    DSP Cylinder Engraving Machine , Tool Dia6mm Cnc Router Machine

    Ask Lasest Price
    Brand Name : Easwon
    Certification : ISO, CE
    Model Number : C164F
    Price : USD5000 - USD15000
    Delivery Time : within 15 days
    Payment Terms : T/T or L/C
    Supply Ability : 500 set per month
    • Product Details
    • Company Profile

    DSP Cylinder Engraving Machine , Tool Dia6mm Cnc Router Machine

    C164F Cylinder Engraving Machine


    This engraving machine is mainly used for engraving the cylinder workpieces like sofa legs, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue etc.


    C164F Cylinder Engraving machine specification:

    Structure materialSteel structure
    Working areaLength: 1200mm, diameter: 200mm
    TransmissionX/Y Taiwan square rail 20, Z ball screw 25
    Max. moving speed15000mm/min
    Max. engraving speed10000mm/min
    Reposition+/-0.05mm
    MotorServo motor, 4 rotary device use stepper motor
    Spindle motor1.5kw water cooling spindle
    Spindle speed0-24000rpm
    ConventorChina sifang brand
    Control systemDSP control system
    Compatible softwareArtcam/TYP3/CAD/CAM/HPGL
    Tool diameterØ6mm
    VoltageAC380V, 50HZ, 3PH
    Package size2000x1600x1400mm
    Weight600kg

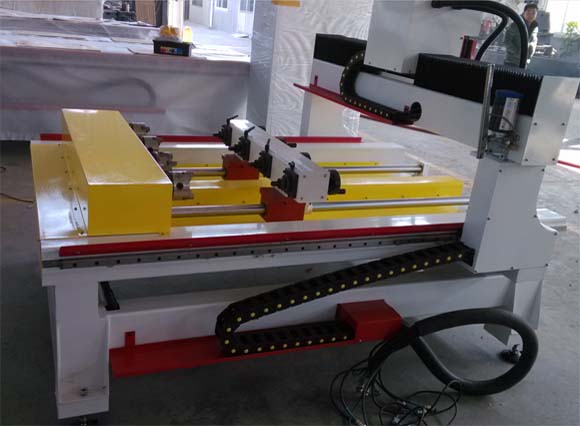

    Machine pictures:

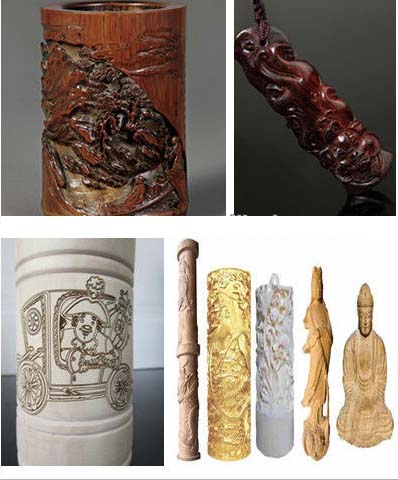

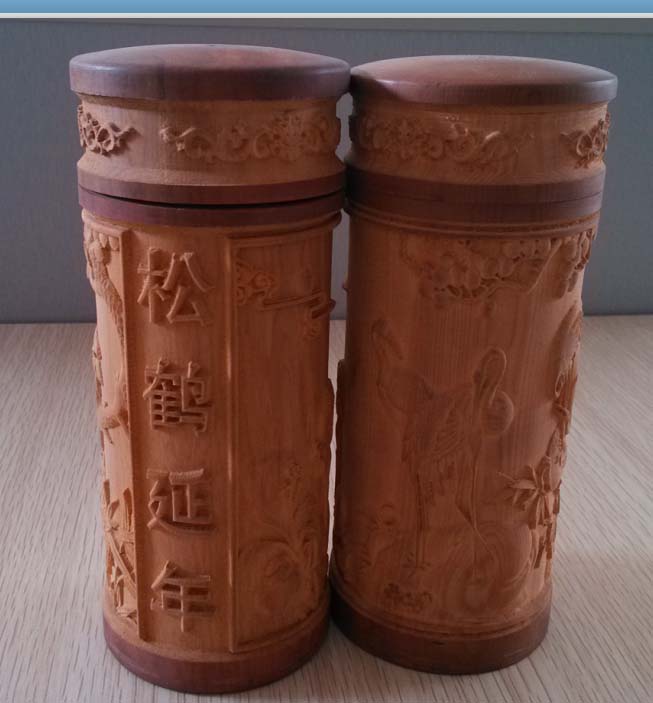

    Working piece samples:



    After sales services:


    1. Warranty: 1 year

    2. Lifetime upgrades and consulting services

    3. 24-hour servic hot line for consulting and solving the problems

    4. Provide product design and solution within 24 hours

    5. Supply operational manual and maintance manual in English.
