3 Point Small Scale Agricultural Machinery Dia660mm Hydraulic Reversible Disc Plough

1LY(SX) series boron steel 3 point hydraulic reversible turning disc plough with 660mm disc diameter

1LY(SX) series hydraulic reversible two-way disc plough products are mainly used for tillage on dry cultivated or fallow land. They not only have the function of ordinary disc plough, but also have the characteristics of short idle distance of travel on the edge of fields, high productivity, low oil consumption etc. They are also suitable for working on terraced fields and small piece of farming land.

Technique parameter:

• Twoway disc plough Hydraulic system is automatically and the operation is smooth without any troubles.

• When tillage,the two-way designing could reduce idling from both sides of the field.

Disc plough specification:

Model	Unit	1LY(SX)-325	1LY(SX)-425	1LY(SX)-525	1LY(SX)-625
Working width	mm	750	1000	1250	1500
Working depth	mm	250-300	250-300	250-300	250-300
No. of discs	pcs	3	4	5	6
Disc diameter	mm	660	660	660	660
Overall weight	kg	620	700	830	950
Matched power	hp	50-80	80-100	100-120	120-150
Linkage	Standard three point mounted

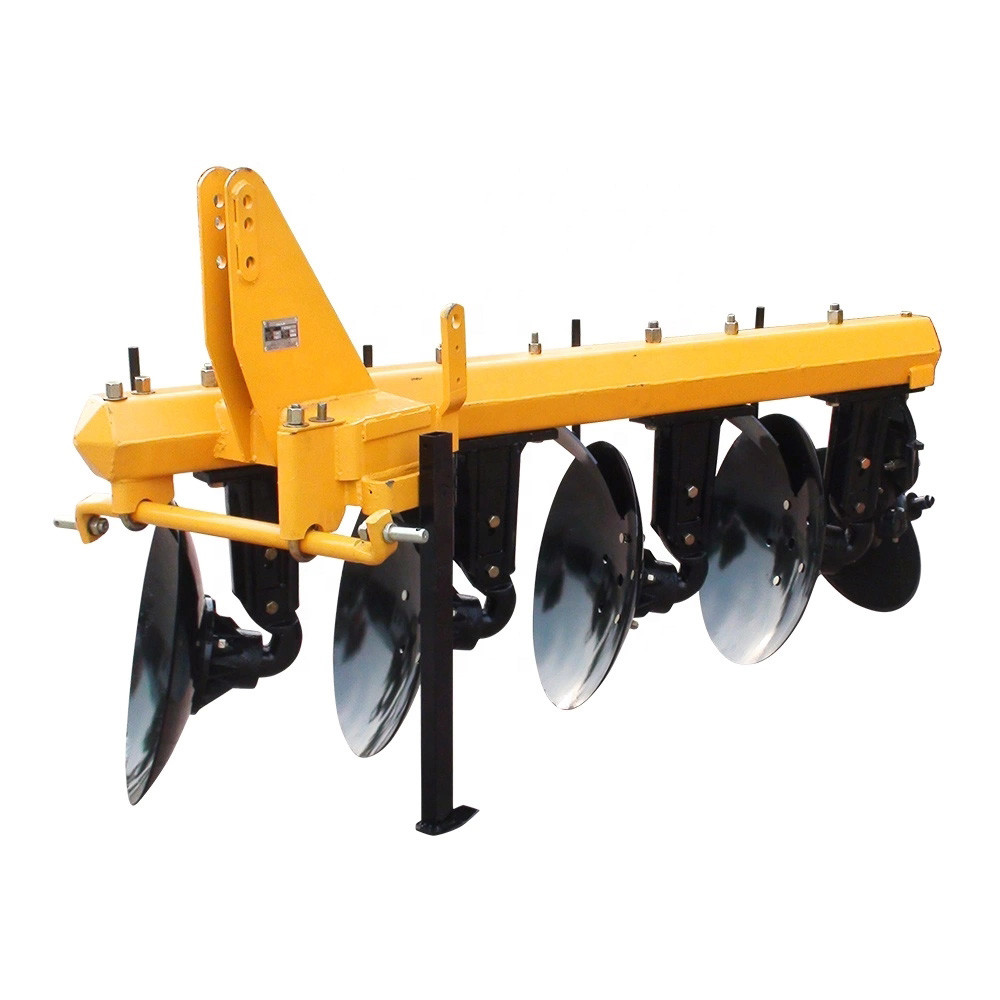

Disc plough photo:

3 Point Small Scale Agricultural Machinery Dia660mm Hydraulic Reversible Disc Plough

After sales services:

1. Warranty: 1 year

2. Lifetime upgrades and consulting services

3. 24-hour servic hot line for consulting and solving the problems

4. Provide product design and solution within 24 hours
