    FZ-NP380 CNC Woodworking Machinery Computer Beam Saw For Panel Funiture Making

    Ask Lasest Price
    Brand Name : Easwon
    Model Number : FZ-NP380
    Certification : CE
    Price : negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    FZ-NP380 CNC Woodworking Machinery Computer Beam Saw For Panel Funiture Making

    FZ-NP380 Computer beam saw/CNC panel saw

    FZ-NP380 can be widely used for processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness. More and more panel furniture maker choose the computer beam saw for their automatic production line.


    Computer beam saw features:


    1. Floating effect of the floating platform is caused by the pressure, to facilitate feeding, especially suitable for the heavy plate, and can avoid the surface damage.


    2. The machine adopts imported magnetic feet as feed positioning detection control, precise positioning detection size effectively, improve the cutting precision.


    3. Advanced reasonable electrical control design, equipment can be realized automatically return, to ensure the safety of the processing efficiency.


    4. Using precision linear slide rail, strong stability, high precision.


    5. Adopt Taiwan precision gear and rack, durable.


    6.High quality Japanese Mitsubishi CPU control main board.


    7. PC Control System


    8. Sheet metal clip is expected to adopt cylinder and feed forward through the roller bed surface, feeding and accurate, and ensure that saw cutting precision, and will not hurt the workpiece surface.


    9. Automatic sheets-feeder with Japan's Mitsubishi high-performance servo motor drive, big torque, accurate positioning and long service life.


    10.Speed of saw carriage can reach 5-100m/min


    11.Speed adjustable for forward moving of saw carriage.


    Advantage:

    1. Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.


    2. International brands electrical parts are applied for good stability.


    3. Spare parts are thick and solid to maintain high precision, high stability and reliability.


    4. Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiency and protect operators.


    5.Mass production is several times more efficient than common machinery and saves time and power.


    Specifications:


    Technical specificationUnitFZ-NP380
    Max. sawing lengthmm3800
    Max. sawing thicknessmm90
    Main saw blade diametermmØ400
    Main spindle diametermmØ30
    Main saw blade spindle speedr/min4800
    Scoring saw blade diametermmØ180
    Scoring saw spindle diametermmØ30
    Scoring saw blade spinlde speedr/min6500
    Auto feeding speedm/min42
    Saw back speedm/min100
    Saw forward speedm/min0-80
    Main saw motorkw13
    Scoring saw motorkw2.2
    Saw servo motorkw1.5
    feeding servo motorkw1.5
    Total motor powerkw19.7
    PressureMpa6-8
    Overall dimensionmm6300x5600x1800
    Net weightkg5000

    Computuer beam saw details:

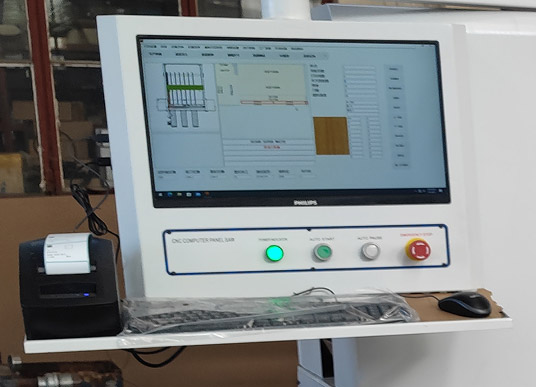

    Industrial PC control System, with printer

    1) Easy operation, safety & reliable.

    2) Which has complete operating hints and troubleshooting guide functions.

    3) It’s cutting plan can edit manually; can simulate or execute cutting plans.

    4) Can compatible with bar code manage software or factory automation software

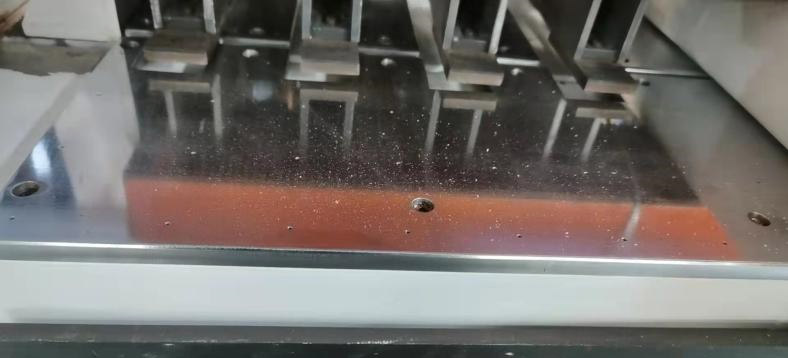

    Manipulator automatic feeding device

    The clamping hand adopts anti-collision rubber head to protect the plate.

    Servo motor drive using Taiwan imported KH grinding grade gear, rack


    Advantages: high hardness, high precision, wear resistance, long - term guarantee accuracy and so on
    Imported high precision reducer, automatic oiling system

    Big and small saws start independently and lift vertically.

    Adopting precision circular guide rail
    Saw car drive using rack and pinion, servo motor traction
    Guide rail device: Taiwan imported high precision circular guide rail parallel double suspension, more stable , durable and wear-resistant, guarantee sawing precision and no deformation for long-termThe table adopts air floating bead, 3.0kw high pressure fan, the workpiece is easy to move
    The main saw uses 13kw motorDelta servo, Delta PLC, Korea LS electrical, contactor

    The feed port adopts manual wire pulling and emergency stopping device. Keep workers more safer

    Hard chrome plated steel table panel

    Option : side alignment

    Servo side alignent, precise positioning

    Package and shipping:


    We will take care of your machinery packages well like picture show.
    Our workers will make sure your machine clean before package.
    We will add stretchy film for the whole machine and spare parts for delicate protection.
    We will make export standard strong Wooden box case package as your request.


    Guarantee:


    The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.


    Technical support:


    Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
    We provide English version manual and Operational video.
    Engineer available to service machinery overseas.


    After sales services:


    Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
    If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
