Linyi Ruixiang ------------ One Stop Poultry Project Supplier
We can supply full complete set systerms for Chicken Farms.

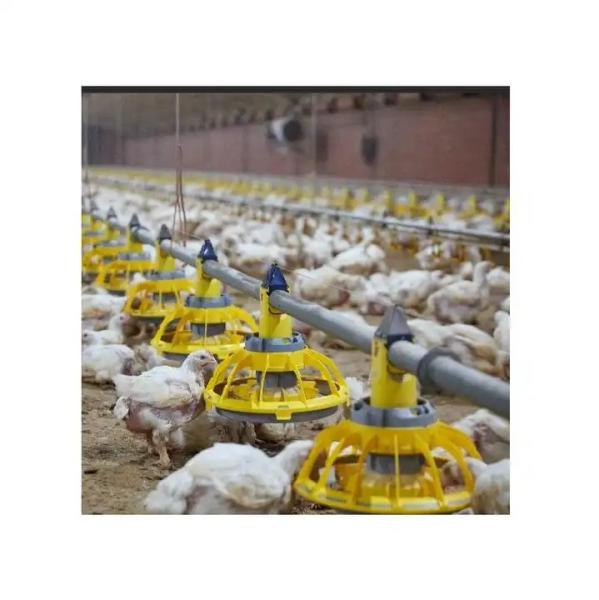

1. Feeding System
The system is used to convey feed from each vice hopper into each
feed pan automatically in your broiler building.
1). Vice hopper: 70Kg, 90Kg
2). Drving motor: Power: 0.75Kw/1.1Kw/1.5Kw; Voltage:
380V/220V/customized, 3-phase/1-phase; Frequency: 50Hz, AC current
3). Galvanized feed pipe:
Diameter of feed pipe:Φ45mm; Material: hot-dip galvanized sheet
pipe with the zinc coating amount-more than 275g/m2.
4). Helical spring auger: imported from South Africa, feeding
ability:400Kg/h
5). Feed pan:
Material: PP--Polypropylene
Grilles: 14/16 grids
Diameter of pan bottom-330mm
Net weight: 560g~700g/pc
6). Sensor:
imported from Germany, time delay range: 0-2 hours
7). Lifting&suspension system:
It's very convenient to adjust the feeding line height by winch.
2. Main feeding system
The system is used to convey feed from silo or manpower hopper into
each vice hopper of pan feedling line automatically.

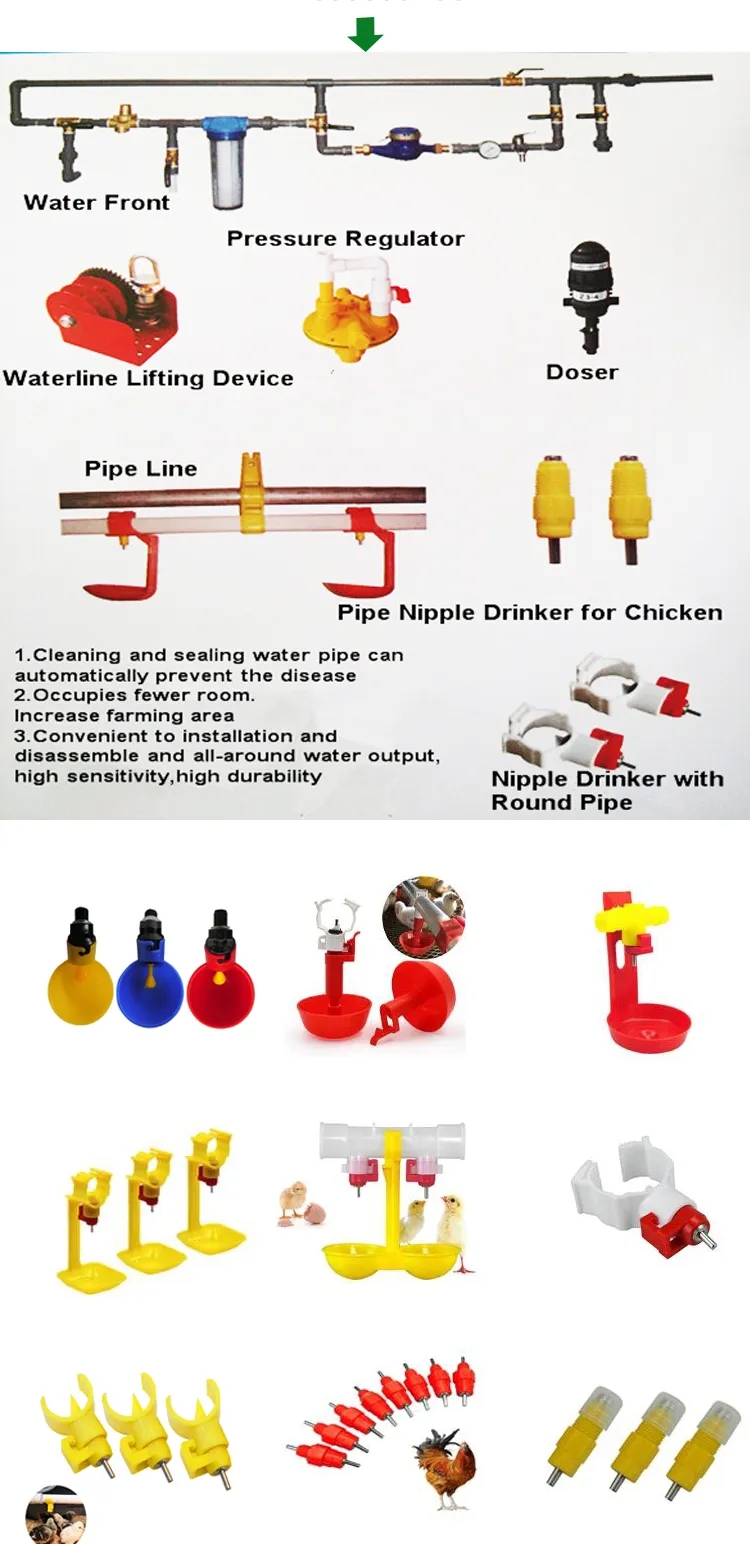

3. Nipple drinking system
The system supplys clean water to each drinking line steadily, the
water will be out easily when birds touch nipples.
1). Waterline front system: including water meter, filter, pressure
regulating valve, doser.
2). Pressure regulator
3). Water pipes:
Round water pipes, diameter: 25mm, material: PVC
4). Aluminum profile suspension:
5). Nipple:
a. Made of high quality plastic (outside shell) and stainless steel
(inner rod), anti-corrosion, service life over 10 years.
b. Avoiding water leakage and its bad influence to chicken house.
c. Nipples is 360 degree triggering, easy to drink.
d. Meeting drinking demand of different-period chickens.
Drip cup:
Single-arm design is more suitable for modern chicken raising idea.
4. Ventilation system
The system controls climate condition, provides fresh air, proper
temperature and humidity for different stage chickens, ensuring
your chickens provide maximum production.
| Specification | 50'' butterfly cone fan | 50'' axial flow box fan | 36'' axial flow box fan |
| Flow amount(m3/h) | 51020 | 43170 | 20800 |
| Size(L*W*H)(mm) | 1380x1380x1360 | 1380x1380x450 | 1000x1000x450 |
| Noise level(db) | ≤65 | ≤65 | ≤64 |
| Power(Kw) | 1.1 | 1.1 | 0.4 |
| Voltage(V) | 380/220/others | 380/220/others | 380/220/others |
| Current(A) | 2.8 | 2.8 | 1.25 |
| Weight(Kg) | 100 | 89 | 54 |
5.Cooling pad system
When the air goes through cooling pads, the heat will be taken down
by the evaporation of water, so the air will be cooled before going
into your poultry farms.
6.Environment control system
The system can control the temperature in your broiler building
automatically by controlling ventilation fans, cooling pads, air
inlets and heaters.
1). Agrologic brand (T607/T616/ImageII) or Rotem brand (AC2000)
controller panel;
2). Temperature sensors, humidity sensor;
3). Power control box/electric cabinet with
Chnt/Schneidar/Siemens/Fuji/ABB brands AC contactors or circuit
breakers for each motor or pump;
4). Feed weighting and chicken weighting for your option.
Packing and shipping:
Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24
hours online.
We provide English version manual and Operational video.
Engineer available to service equipments overseas.
