Automatic poultry control shed equipment for chicken broiler and breeder

Our poultry shed equipment including the following five aspects :

1.Main feed delivery system ,
2.Auto pan feeding system ,
3.Auto Water nipple drinking system ,
4.Tunnel ventilation system ,
5.Environment control system.

Below is poultry shed equipment layout:


1.Main feed delivery system

The main feed delivery system is used to delivery feed from silo to the sub hopper of feedingline in the poultry house
There are two kinds of silo for your option (275g/m2 and Glass fiber reinforced plastic)
If you want save cost for invest , you can use a indoor bigger hopper instead of silo


2. Auto broiler pan feeding system:

1). Our Broiler farm pan feeding system consists of hopper, motor, feed pipe and auger and haning system
2). Therer are two kinds of pan feeding system for your option A and B .
3).Broiler feedingline Specification : 3-4 pans per 3 meters , feed pipe diameter: ø45mm, hot gavalnized steep pipe
4).Feed pan capacity : 45-55 birds /pan
5). Technical System auger from south africa

3.Auto water nipple drinking system

1).Our broiler water nipple drinking system consist of water front parts, nipple drinking line , hanging system, regulator and water line end parts
2).Water Level Display Height:

3). Nipple drinker capacity : 8-12 birds/ nipple
4). We have two kind of broiler water drinking system(Plasson drinking system and Lubing drinking system) for your choice

4.Tunnel Ventilation system:

1) 50 inch ventilation fan : box fan or cone fan
The fan has accredited Europe of CE certification.
The guarantee period is one year,during which the easily damaged parts are offered free of charge.

Evaporation Water cooling pad system : It is best effecitive combiation to decrease the temperature in poultry house in hot cliamte area .
Water cooling pad curtain of broiler poultry farming equipment
Coling Paper Size : length : 1.5 m ,1.8m , 2.0 m width:0.6m. thickness : 0.15m
Size with aluminum allloy frame : 1.66m ,1.96 m ,2.16 m
The best air speed getting trough water cooling pad is 1.8 meter /second


5.Environment control system

1). Environment controller
Agrologic 610 , Agrologic 616 , Rotem AC2000, AC2000 PLUS for your option .
control box :Schneider brand or china zhengtai brand

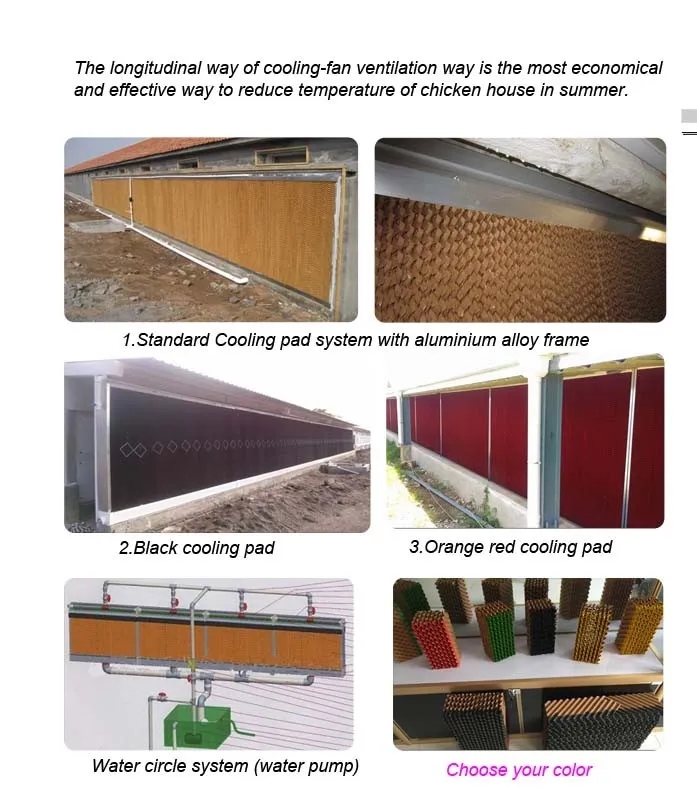

2). Cooling pad system:
The longitudinal way of cooling-fan ventilation way is the most economical and effective way to reduce temperature of chicken house in summer

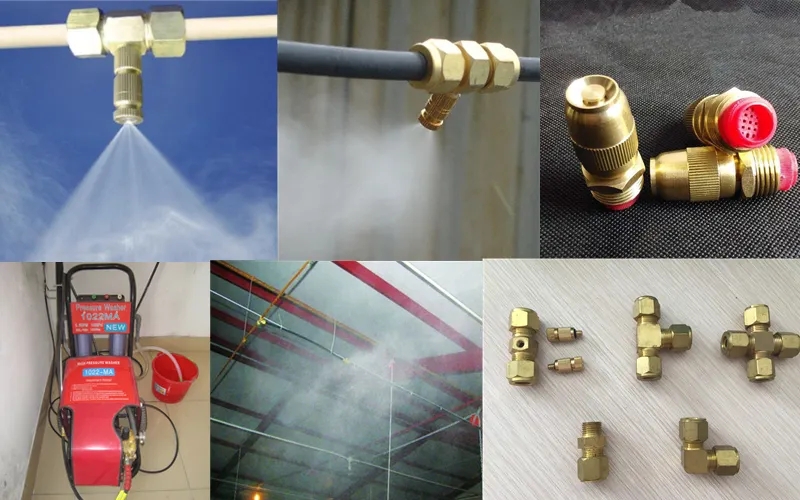

3). Spraying system (Fogging system)
This system effectively cools, humidifies, dedusts and disinfects the henhouse(the temerature is quickly reduced by 3-8 degrees centigrade within a few minutes)

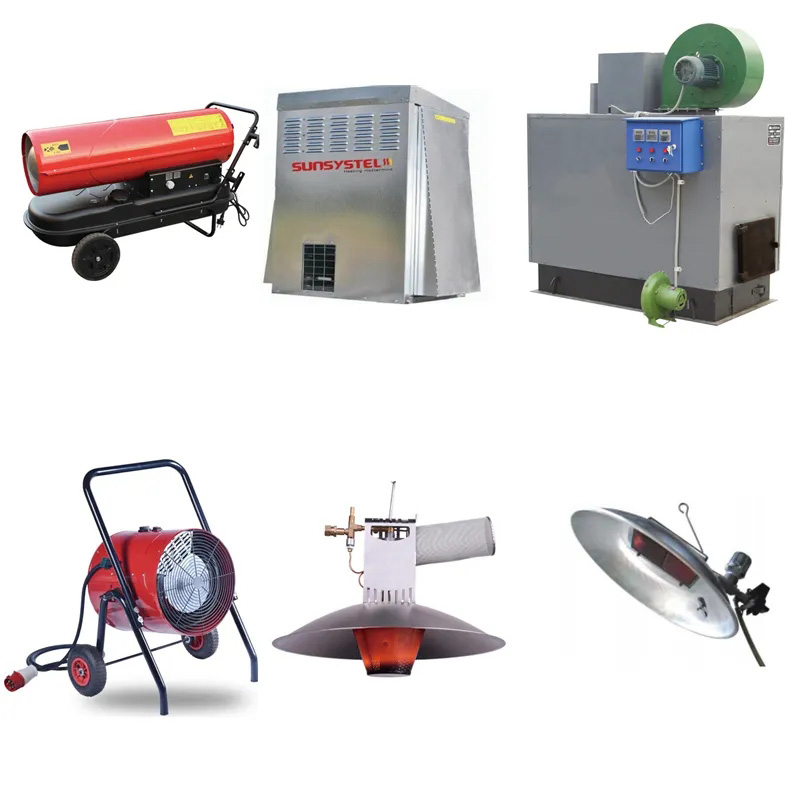

4). Heating system
We can offer gas brooder , diesel heater ,gas heater and hot blast heater

Packing and shipping:

Our Service:
1. Poutlry farm design and construction
2. Offer CAD layout drawing
3. Installation : two installation engineers will be sent to farm site guid installtion and give training for equipment operation

Our warranty :
1. all plastic products are made of virgin raw material such as the feed pan , water drip cup ,clips , air inlet 15 years 2. Nipples : 10 years
3.The accesorries such as the bolts ,nuts ,pulley ,water winch ,rope clips are stainless steel
4. Feed motors from Italy brand Transtechno
5. Auger from South Africa technical system
6. Feed sensor from Germany
7. Control box :Schneider brand or china zhengtai brand

We also can provide you overvalue services :( one -stop service for poultry farm needs )
1. Poultry House site Selection
2. Poultry House Design and Construction Preparation Guidance.
3. poultry house construction
4. Breeding Equipment Installation and guid operation

Technical support:

Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service equipments overseas.
