    Diesel Engine Auto Painting Oven Car Infrared Spray Booth With 40pcs LED Lamps

    Ask Lasest Price
    Brand Name : Easwon
    Model Number : QX2000
    Certification : CE
    Price : negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Diesel Engine Auto Painting Oven Car Infrared Spray Booth With 40pcs LED Lamps

    QX2000 Auto Painting Oven Car Infrared spray booth(luxury type, Diesel engine) (the power can be also electric)

    Features:

    1. Professional supplier with 20 years experience ISO certificate
    2. Lamp boxes are 45° fixed on upper two sides, with 10 groups x 4pcs = 40pcs 18w energy saving LED lamps
    3. Infrared lamps quick drying system
    4. The baking lamps is equipped with an induction system and dustproof device
    5. Dust-free room for painting,good performance in baking
    6. Micro-computer Programmed Controlling,touch screen
    7. 50mm EPS(epispastics polystyrene) insulation material with S=0.476 two side steel panel
    8. Our products had sold to Germany,Norway,Nigeria,Egypt,Saudi Arabia,The United Arab
    Emirates,Ethiopia,Qatar,Libya,Namibia,Cameroon,Ghana,Togo,Angola,Tanzania,Seychelles,Sudan,Philippine,Malaysia,Singapore,Australia,Russian Federation etc...

    Speciication:


    Inside dimension9000x4500x3500mm
    Outside dimension9100x6100x4150mm
    Entrance doorAluminum alloy binding frame work(thickness 108mm), 1 set folding door size: 3450x3400mm
    Personal door1 set side hung door: 700x1700mm
    Wallboard50mm EPS(epispastics polystyrene) insulation material with S=0.526mm two side steel panel, width 1150mm
    Lighting systemLamp boxes are 45° fixed on upper two sides, with 10 groups*4pcs= 40pcs, 18W energy saving LED lamp
    Air intake and Exhaust system

    With 2pcs centrifugal air blowers, total parameter: YDW4.5L1, 2*4KW, 25000m3/h

    With 1pc centrifugal air blowers, single parameter: DDF630B, 7.5kw, 23000m3/h

    Cabinet setting

    Intake air from upside, downside exhaust wind.

    Frame is made of tube 50*50mm, body plate is made of galvanized plate(thickness: 0.8mm)

    Air ductMade of galvanized plate(thickness is 0.8mm), 700*700*900mm, 2pcs straight, 1pc elbow
    Heating systemWith 1pc riello G20 diesel burner, 1pc stainless steel heat exchanger, 1pc actuator, 1pc fuel box, 1pc fuel box shelf, maximum heat output 250000kcal/h. The operating temperature: 50℃-60℃. Max. temperature: 70℃
    Filtration system

    The top of the room is equipped with CC-G650 high efficiency filter device, which can effectively filter 5pm dust particles. The air inlet is equipped with 300 initial filter device, and the top filter cotton pad is pressed by galvanized steel plate.

    Equipped with 1 layer of glass fiber paint mist filter cotton, 3 layers of activated carbon filter, 1 environmental protection cabinet.

    RoofGalvanized steel panel
    Basement

    High performance antirust treatment 5 rows of grille galvanized(upgraded)

    The column for high strength 40*80mm galvanized square. 2 pcs antirust treatment ramps: 2000*630mm

    Control systemPainting, baking, temperature controller, breakdown indicator, power switch, emergency stop switch, and time setting
    Voltage380v, 50hz, 3ph
    Light intensity≥1000luxes
    Air flow speed≥0.25m/s
    Total power16.5kw
    Loading1x20’FCL

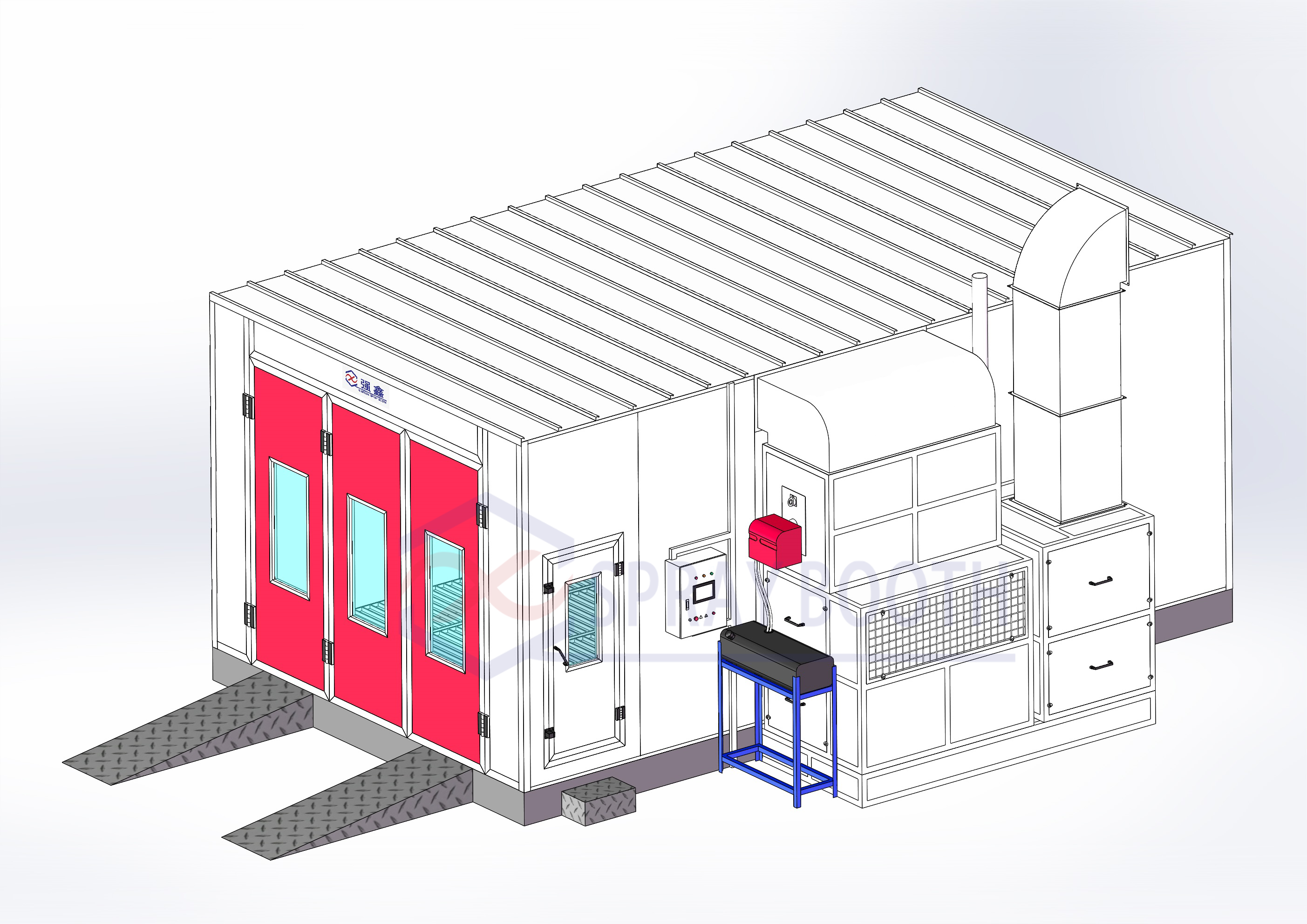

    The schematic drawing of spray booth:


    Spray booth details:

    Package & Shipping:

    One set car spray booth with 21-22CBM 3 Tons can be loaded in 20 feet container.


    After sales services:


    1. Warranty: 1 year

    2. Lifetime upgrades and consulting services

    3. 24-hour servic hot line for consulting and solving the problems

    4. Provide product design and solution within 24 hours
