Stainless Steel Round Wood Polishing Machine For Deburring Edge

    Buy cheap Stainless Steel Round Wood Polishing Machine For Deburring Edge from wholesalers

    Buy cheap Stainless Steel Round Wood Polishing Machine For Deburring Edge from wholesalers
    • Buy cheap Stainless Steel Round Wood Polishing Machine For Deburring Edge from wholesalers
    • Buy cheap Stainless Steel Round Wood Polishing Machine For Deburring Edge from wholesalers
    • Buy cheap Stainless Steel Round Wood Polishing Machine For Deburring Edge from wholesalers
    • Buy cheap Stainless Steel Round Wood Polishing Machine For Deburring Edge from wholesalers

    Stainless Steel Round Wood Polishing Machine For Deburring Edge

    Ask Lasest Price
    Brand Name : Easwon
    Model Number : DR-1000-GS
    Certification : ISO, CE
    Price : negotiated
    Payment Terms : T/T or L/C
    Supply Ability : 200sets per month
    Delivery Time : within 20 days
    • Product Details
    • Company Profile

    Stainless Steel Round Wood Polishing Machine For Deburring Edge

    Stainless steel deburring and polishing machine can process almost all of metal parts such as steel, stainless steel, aluminum etc, It is a perfect solution for deburring, grinding, polishing, brushing and edge rounding.


    Steel deburring and polishing machine features:


    1. Pneumatically controlled eccentric sanding roller, which can be lifted and lowered independently. When equipment fails, all sanding rollers automatic lifting to protect the material from damage;
    2.Special customized type tensioning cylinder with a large bore and high stability;
    3.Independent bearing hanging plate, easy to adjust;
    4.Automatic thickness measurement function, automatically locate the thickness of the plate;
    5.Damping belt deviation knob, adjust the deviation of the belt, the operation is simple and convenient.
    6.The deburring machine can be used in the wet process or dry process.
    7.Convenient opera:on, touch screen opera:on panel, LED light source inside the equipment, easy to observe the processing status of the workpiece.
    8. The automatic deburring machine has different combinations of grinding heads, which are for different requirements of workpieces.For laser cutting stamping parts,it can do deoxidizing, grinding, deburring, polishing and edge rounding


    Steel deburring and polishing machine specification:


    ModelUnitDR-1000-GS
    Max. sanding widthmm1000
    Sanding thicknessmm0.6-80
    Min. sanding sizemm50x50x0.5
    Feeding speedm/min0.5-6
    Rotary brush rotating speedr/s8-20
    Orbital revolution speedr/s8-12
    Sanding belt size(1pc)mm2200x1050
    Rotary brush size(6pcs)mmØ300x300
    Working table heightmm860-980
    Total motor powerkw39.34
    Orbital revolution motor powerkw1.5
    Rotary brush motor powerkw2.2x3
    Sanding motor powerkw11
    Feeding motor powerkw1.5
    Rotary brush lifting motor powerkw0.37
    Working table lifting motor powerkw0.37
    Vacuum adsorption motor powerkw15
    Dust collection motor powerkw3
    Noisedb85
    Range of chamfermmR0.1-R0.5
    Air flow of air blower for dust collectorm3/h2300
    Working pressurempa0.6
    Control systemPLC, 7''
    Overall dimensionmm3100x2250x1900
    Net weightkg3200

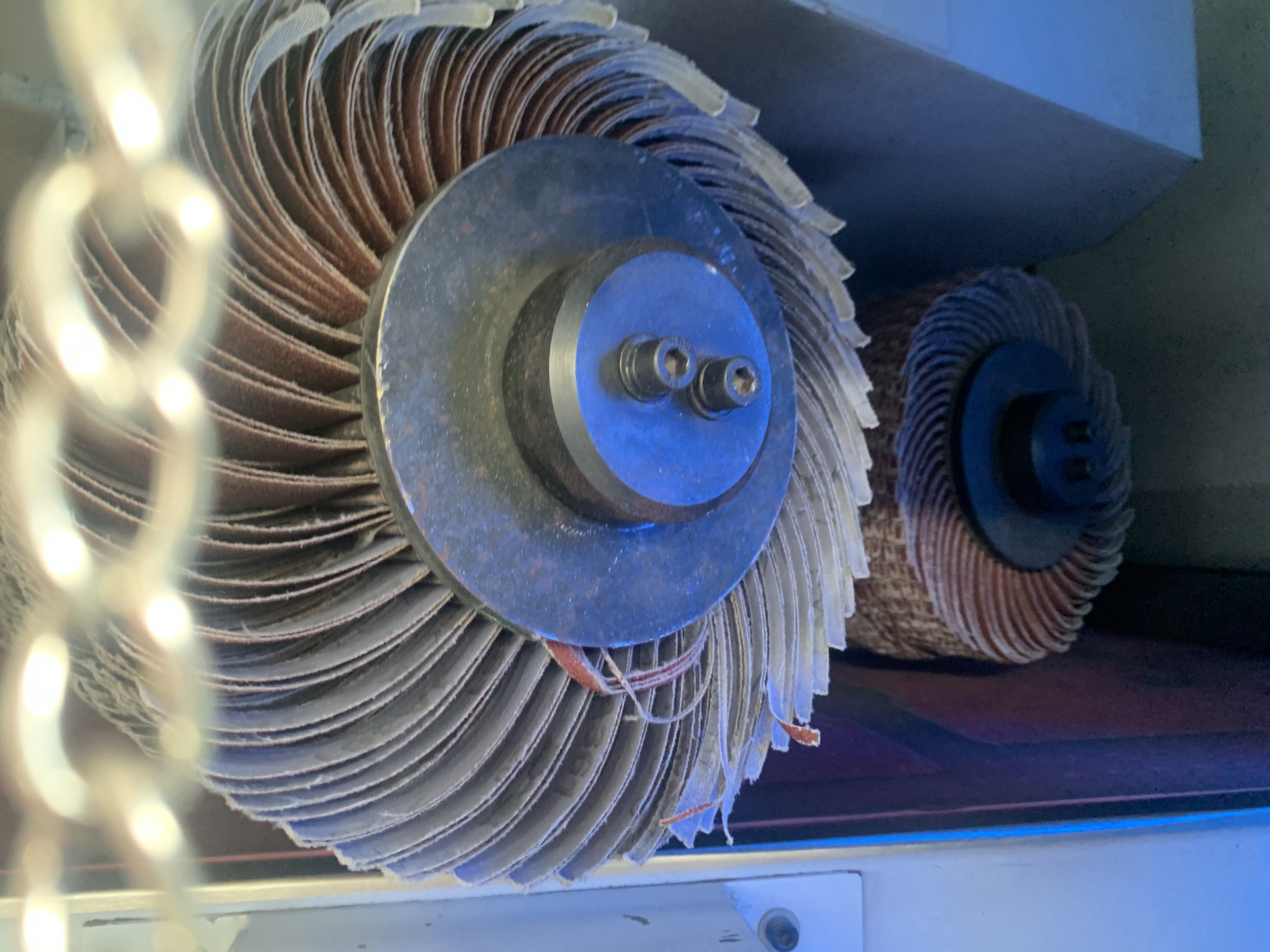

    Details of deburring and polishing machine:




    Package&Shipping:


    It is packed by wooden case suitable for shipping by LCL.


    After sales services:

    1. Warranty: 1 year

    2. Lifetime upgrades and consulting services

    3. 24-hour servic hot line for consulting and solving the problems

    4. Provide product design and solution within 24 hours
