    CNC Woodworking Band Saw Machine CSB1212A Vertical Curve Band Saw

    Ask Lasest Price
    Brand Name : Easwon
    Model Number : CBS1212A
    Certification : ISO
    Price : negotiated
    Payment Terms : T/T or L/C
    Supply Ability : 50 set per month
    Delivery Time : within 20 days
    • Product Details
    • Company Profile

    CNC Woodworking Band Saw Machine CSB1212A Vertical Curve Band Saw

    CSB1212 CNC woodworking vertical curve band saw


    Features:


    1. The open feed platform is more convenient and the sawing efficiency is higher. Sturdy cylinder clamp, reliable clamping device, wide clamping range, and can simultaneously saw and cut multilayer boards. The saw clamping device can enhance its precision.


    2. Advanced CNC system and special CAD software, automatic unloading, which can save wood, and easy to learn and operate.


    3. High flexibility and well-known brand cable, with high wear resistance, folding resistance, high temperature resistance, acid and alkali resistance.


    4. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.


    Application:


    It is usded for processing the parts of sofa, headboard or foot board of beds, chairs' leg and back, dinning table, hatstand, art craft, souvenir, labels, etc.


    Specifications:


    Model No.CSB1212CSB1225
    Max size of work-piece1220X1220X250mm2500x1220x250mm
    Cutting angle+90°/-90°+90°/-90°
    Cutting depth570mm570mm
    Band saw blade size4470x25x0.9mm4470x25x0.9mm
    Saw wheel diameter600mm600mm
    Min cutting radiusR95R95
    Processing speed1-25m/min1-25m/min
    Return speed6-40m/min6-40m/min
    X-axis motor1.5kw1.5kw
    Y-axis motor1.5kw1.5kw
    Z-axis motor2.2kw2.2kw
    Saw body motor5.5kw5.5kw
    Dust hood outlet diameter100mm100mm
    Working air pressure6-8bar6-8bar
    Overall dimension3300x3300x2500mm6200x3300x2500mm
    Net weight2000kg3200kg

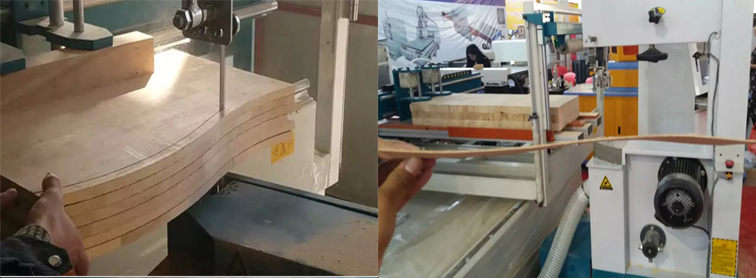

    Vertical curve band saw details:



    Package and Shipping:


    The inner packing is waterproof plastic wrapping film, outer is plywood wooden case



    After sales services:


    1. Warranty: 1 year

    2. Lifetime upgrades and consulting services

    3. 24-hour servic hot line for consulting and solving the problems

    4. Provide product design and solution within 24 hours

    5. Supply operational manual and maintance manual in English.
