MJ143C Automatic multi-chip saw machine
MJ143E automatic multi-chip saw machine can professionally solve
the vertical multi-piece sawing of wood with a processing width of
less than 250mm and a processing thickness of less than 100mm.
Mainly applicable industries: floor strips, decoration strips,
handicraft strips, door and window strips, etc.
MJ143C Multi-chip saw Features:
1. This machine is specially used for the production of modified
materials, wood strips and wood core boards. According to the
preset size, multiple wood strips can be sawed out in one feeding.
The feeding wheel is used to feed the material, and the upper and
lower feeding wheels are used for synchronous feeding.
2. There are 5 sets of upper feeding wheels and 3 sets of lower
feeding wheels. The feeding is strong and powerful. The pressure of
pressing the wood is controlled by the pressing cylinder, which can
be adjusted freely depending on the hardness of the wood.
3. The feeding speed can be changed steplessly, and can be adjusted
elastically according to the nature of the wood.
4. Feeding wheel feeding, which is more economical than crawler
feeding, easy to control and maintain, and uses air pressure for
pressing material, so even if the thickness of the wood changes
greatly, the pressing pressure is also fixed, and the thickness of
the pressing material is wide, up to 30 mm.
5. Electric adjustment of the upper feeding wheel frame and the
lifting and lowering of the saw blade spindle is easy to operate.
6. The saw blade spindle can be lowered to make the saw blade leave
the saw blade work surface, and it is easy to replace the saw
blade.

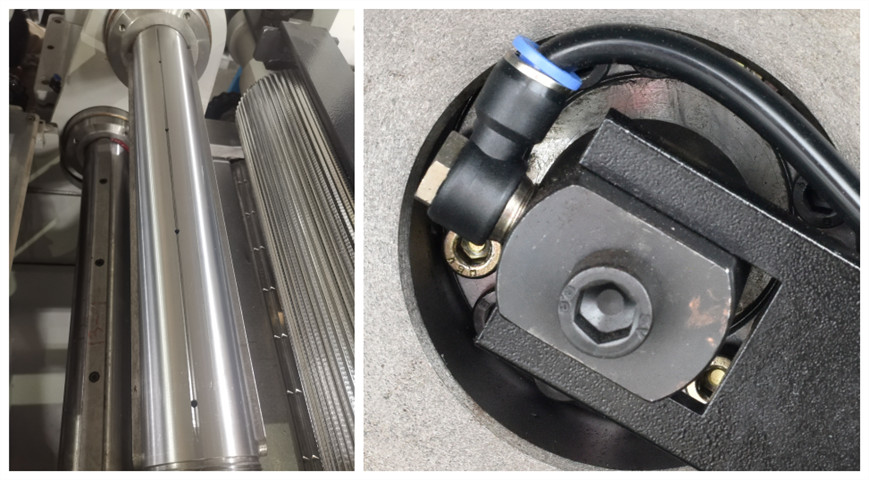

7. The diameter of the spindle is 50 mm, using special alloy steel
material, which has been heat treated and ground for many times.
8. The main shaft adopts large-sized and high-grade bearings, which
are load-resistant and have a long service life.
9. Loading and unloading film group to protect the operator.
10. The saw blade cooling device prolongs the service life of the
saw blade and reduces the cost of purchasing the saw blade
11. At the same cutting height, a smaller diameter and thinner saw
blade can be used, which greatly reduces the loss of wood and saves
the cost of purchasing saw blades.
12. The special installation and fixing method of the saw cutting
board makes the production and installation of the saw cutting
board simple and convenient.
13. The upper feeding wheel can be lifted off the table, and it is
convenient to maintain and remove the dust accumulation of the
feeding wheel.
Multiple chip saw specification
| | MJ143C |
| Saw blade size | mm | Ø200- Ø355 x Ø50 |
| Max. sawing thickness | mm | 45(Ø200mm saw blade) 60(Ø230mm saw blade) 70(Ø250mm saw blade) 85(Ø300mm saw blade) 100(Ø355mm saw blade) |
| Max. sawing width(open files) | mm | 250 |
| Min. sawing length | mm | 210 |
| Saw spindle speed | r/min | 3600 |
| Total power | kw | 25.7 |
| Motor power | kw | 22 |
| Feeding motor power | kw | 2.2 |
| Elevating power of feeding mount | kw | 0.55 |
| Elvating power of saw mount | kw | 0.55 |
| Voltage | | 380V, 50Hz, 3Ph |
| Feeding speed | m/min | 6-24 |
| Overall dimension | mm | 2300x1080x1400 |
| Weight | kg | 1600 |
| Package | | Wooden case |
Details and description:
 |  |
| The upper five and the lower three driving wheels are synchronously
feeding, which is powerful and powerful | The high-torque reduction worm gear box is equipped with a
universal joint for smoother feeding |
 |  |
| The upper and lower anti-rebound device can effectively prevent the
wood from rebounding and hurting people | The feeding speed is adjustable in nine gears, and the appropriate
speed can be selected according to different requirements |
 |  |
| Saw shaft, feeding electric lifting, according to the thickness of
wood processing, quickly adjust the lifting height | Equipped with pump system, maintenance is more convenient and fast |
 |  |
| Polyurethane bridge board, improve sawing accuracy, economical and
durable | The mist-like internal water spray device prolongs the service life
of the saw blade and minimizes the amount of water received by the
wood |
Package and shipping:
The multiple chip saw is packed by plywood case, which is suitable
for FCL and LCL shipping.
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
