    17.32kw Sanding Width 1000mm Curve Sander For Wood Furniture

    Ask Lasest Price
    Brand Name : Easwon
    Model Number : BSG1000
    Certification : ISO
    Price : negotiated
    Payment Terms : T/T, L/C
    Supply Ability : 500 set per month
    Delivery Time : within 20 days
    • Product Details
    • Company Profile

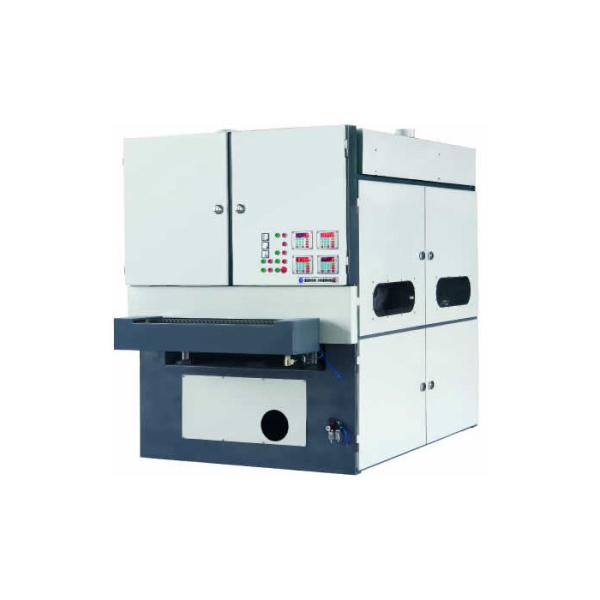

    17.32kw Sanding Width 1000mm Curve Sander For Wood Furniture

    Sanding width 1000mm Woodworking curve sanding machine


    Woodworking curve sanding machine is equipped with micro computor controll panel, auto stop system, double press rollers. It is easy to operate, high precision, safty. Woodworking curve sanding machine is used for calibrating and polishing all kinds of panel which thickness deviation is big, it is suitable for sanding the panel of solid wood, bamboo wood, panel furniture, door & windows, veneer board, laminated wood etc.


    Woodworking curve sanding machine specification:


    SpecificationUnitBSG1000
    Max. sanding widthmm1000
    Max. sanding thicknessmm100
    Motor for holistic liftingkw0.55
    Motor for sanding disc liftingkw0.37
    Motor for sanding disc rotatingkw2 x 1.5
    Rotating speed of sanding discrpm60-350
    Quantity of sanding discpcs4,4,3
    Motor for sanding rollerkw2 x 2.2
    Rotating speed of sanding rollerrpm60-350
    Quantity of sanding rollerpcs2
    Diameter of sanding rollermm350
    Motor for convey beltkw1.5
    Feeding speed of convey beltm/min4-18
    Motor for vacuum suction devicekw7.5
    Enter diameter of vacuum suction devicemm4 x 120
    Outlet diameter of vacuum suction devicemm200
    Diameter of roller dust collection devicemm4 x 150
    Air consumption for roller dust collection devicem3/h4 x 1272
    Diameter of blower dust collection devicemm2 x 80
    Air consumption for blower dust collection devicem3/h2 x 390
    Overall dimensionsmm3050x1620x2052
    Net weightkg2200

    The combination of blowing and vacuuming can effectively clear off the dust on the surface of workpiece.Choose the international advanced three-row(4,4,3) staggered eccentric brush discs, which can perform high-precision and perfect sanding on the curve surface of the panels.

    Woodworking curve sanding machine's features:


    1. Special Curved Surface Sanding Machine

    2. The sanding machine is used for finish sanding of solid wood, bamboo wood, panel furniture, wood door and widows, veneer board, laminated wood etc.

    3. It is suitable for calibrating and polishing all kinds of panels which thickness deviation is big.

    4. The micro computer controlling panel is easy to operate.

    5. It is with high precision and good working stability.

    6. The machine with strong rigidity, big weight and using double pressing rollers.

    7. The machine will auto stop to ensure safety when lacking of air pressure or breaking of abrasive belt.


    After sales services:


    1. Warranty: 1 year

    2. Lifetime upgrades and consulting services

    3. 24-hour servic hot line for consulting and solving the problems

    4. Provide product design and solution within 24 hours

    5. Supply operational manual and maintance manual in English.
