CS1225B CNC woodworking vertical curve saw and milling machine

The CNC woodworking curve saw and milling machine is driven by two 6kw HQD spindle motor, can sawing max. size of 1220x2440mm, and use a milling cutter instead of saw blade, the cutting has no angle restrictions, any shape and pattern can be cutted. X,Y and Z axis is transmitted by sophisticated plantary reducer, which is made the machine working faster and has large cutting force compared to ball screw transmission. CNC curve saw and milling machine is suitable for different materials like solid wood, bamboo, MDF, particle board, plastic, plexiglass, rubber, PVC, acrylic etc. It is usded for processing the parts of sofa, headboard or foot board of beds, chairs' leg and back, dinning table, hatstand, art craft, souvenir, labels, etc. It's controlled by automatic program, the operation is easy and save labours. It is an ideal equipment for wood furniture and other factories.

CS1225B CNC woodworking curve saw and milling machine specification:

CS1225B Woodworking curve saw and milling machine main parts:

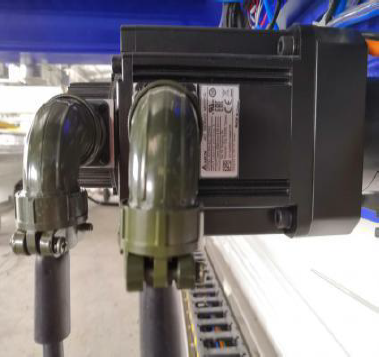

Milling tools	6kw x 2 spindle	Delta servo motor
Shimpo reducer	Pressing cylinder	HIWIN linear guide rail

CS1225B Woodworking curve saw features:

1. The open feed platform is more convenient and the sawing efficiency is higher. Sturdy cylinder clamp, reliable clamping device, wide clamping range, and can simultaneously saw and cut multilayer boards. The saw clamping device can enhance its precision.

2. Advanced CNC system and special CAD software, automatic unloading, which can save wood, and easy to learn and operate.

3. High flexibility and well-known brand cable, with high wear resistance, folding resistance, high temperature resistance, acid and alkali resistance.

4. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.

CS1225B Woodworking curve saw application:

It is usded for processing the parts of sofa, headboard or foot board of beds, chairs' leg and back, dinning table, hatstand, art craft, souvenir, labels, etc.

CS1225B Woodworking curve saw samples:

Package and Shipping:

The inner packing is waterproof plastic wrapping film, outer is plywood wooden case

After sales services:

1. Warranty: 1 year

2. Lifetime upgrades and consulting services

3. 24-hour servic hot line for consulting and solving the problems

4. Provide product design and solution within 24 hours

5. Supply operational manual and maintance manual in English.
