    Jointing L2500mm Woodworking Press Machine

    Ask Lasest Price
    Brand Name : Easwon
    Model Number : MH1725A
    Certification : CE
    Price : negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 500 sets per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

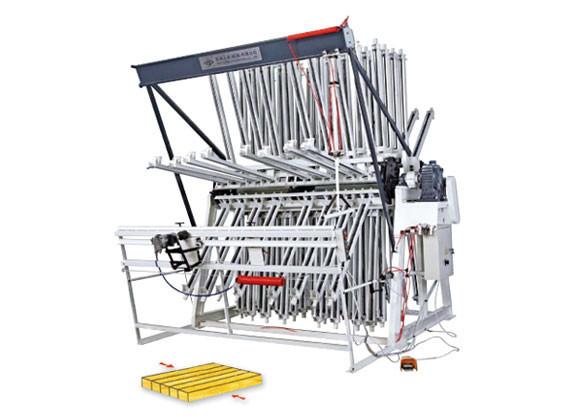

    Jointing L2500mm Woodworking Press Machine

    MH1725A MH1725 Woodworking composer machine

    Woodworking composer is mainly used in furniture, handicrafts, cabinets, solid wood doors etc, The woodworking composer joint small wood pieces to big one up to 1250x2500mm, and the jointed thickness is up to 90mm. It is high efficient and can continue working(no need to wait), it only take 3-7 minutes to complete a standard board(1250x2500mm). Woodworking composer is with less power consumption(1-2kw per day). In somewhere, it can replace window & door frame press machine.


    Woodworking composer specification:


    Technical specificationUnitMH1725AMH1725
    Max. jointing lengthmm25002500
    Max. jointing widthmm12501250
    Max. jointing thicknessmm15-9015-90
    Number of rows614
    Motor powerkw1.51.5
    Main spindle speedr/min22
    Working air pressureMPa0.4-0.80.4-0.8
    Overall dimensionmm3860x3315x37874480x3315x3787
    Net weightkg20304150

    Woodworking composer details:



    Working sample:



    Package & Shipping:


    If it is loaded by FCL, we shall pack woodworking composer by plastic film and wooden pallet. If it is loaded by LCL, it will be packed by wooden case.



    After sales services:


    1. Warranty: 1 year

    2. Lifetime upgrades and consulting services

    3. 24-hour servic hot line for consulting and solving the problems

    4. Provide product design and solution within 24 hours
